Quick Start

Here we show two examples to illustrate how ECoPANN works, and the readers can archieve their project quickly by modifing the examples. The code used to generate these examples can be downloaded here.

Using one dataset

The main process of using ECoPANN includes preparing observational data and theoretical model, training the network, estimating parameters using the ANN chains or the well-trained network.

Let’s consider a general case, the simple linear model:

\[y = a + b\times x\]

where a and b are two free parameters to be estimated, and y is the measurement. We first build a class object for this model:

class SimLinear(object):
    def __init__(self, x):
        self.x = x

    def model(self, x, a, b):
        return a + b * x

    def sim_y(self, params):
        a, b = params
        return self.model(self.x, a, b)

    def simulate(self, sim_params):
        return self.x, self.sim_y(sim_params)

Note

The class object must contain a simulate method, which is used to simulate samples in the training process.

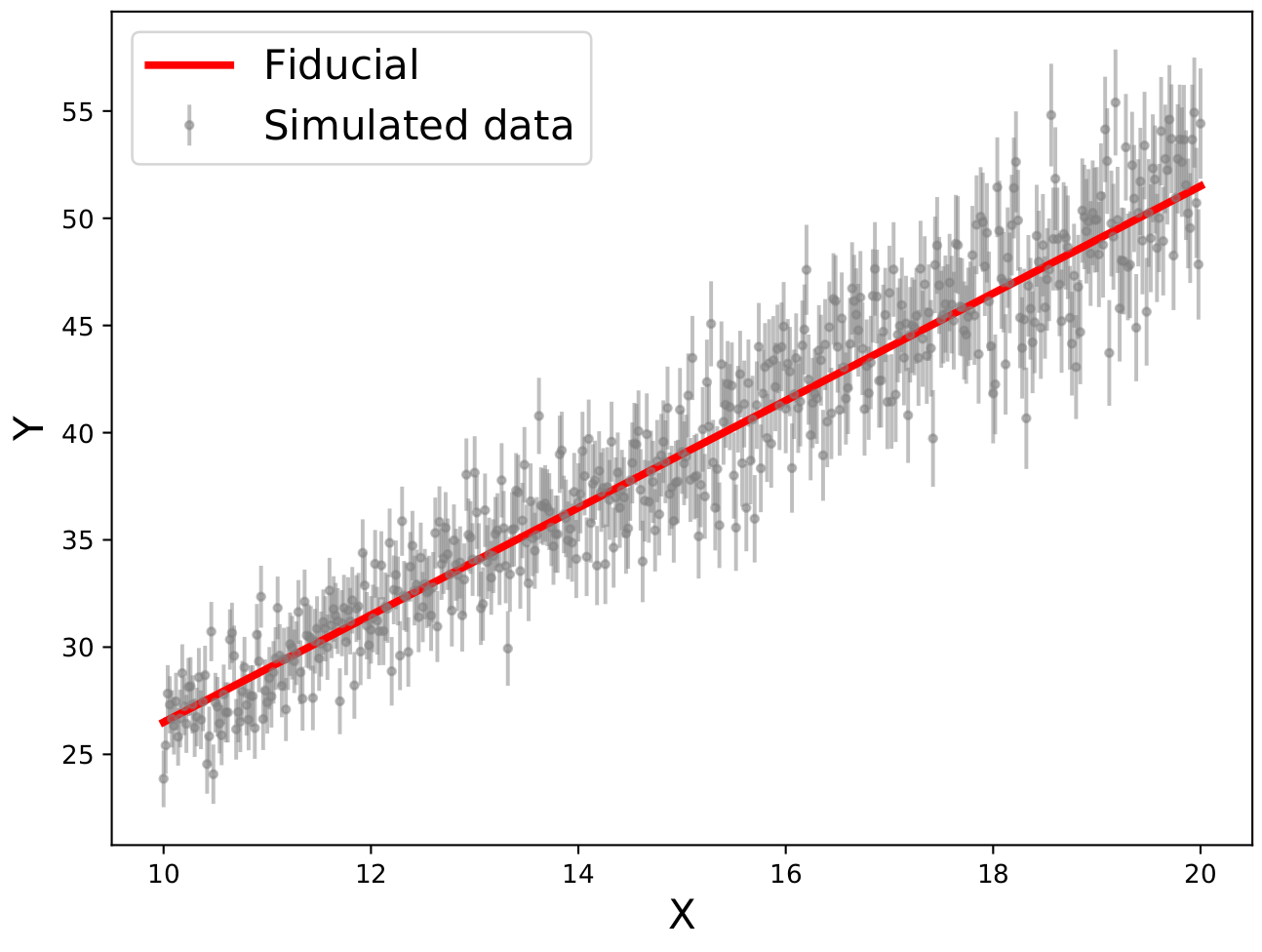

Then a data sample can be simulated as observational data, by using the function below:

import numpy as np
import matplotlib.pyplot as plt

def get_data(x, a_fid, b_fid, random=False):
    y_th = SimLinear(x).sim_y([a_fid, b_fid])
    err_y = y_th * 0.05
    if random:
        y = y_th + np.random.randn(len(x))*err_y
    else:
        y = y_th
    sim_data = np.c_[x, y, err_y]
    return sim_data, y_th

a_fid, b_fid = 1.5, 2.5
x = np.linspace(10, 20, 501)
sim_data, y_th = get_data(x, a_fid, b_fid)

plt.figure(figsize=(8, 6))
plt.errorbar(x, sim_data[:,1], yerr=sim_data[:,2], fmt='.', color='gray', alpha=0.5, label='Simulated data')
plt.plot(x, y_th, 'r-', label='Fiducial', lw=3)
plt.xlabel('X', fontsize=16)
plt.ylabel('Y', fontsize=16)
plt.legend(fontsize=16)
_images/linear_samples.png

After that, we can build a model instance and make some settings for parameter initialization:

model = SimLinear(x)
params_dict = {'a' : [r'$a$', np.nan, np.nan],
               'b' : [r'$b$', 0, 10]}
param_names = [key for key in params_dict.keys()]
init_params = np.array([[0, 5], [1, 3]])

where params_dict is a dictionary that contains information of the parameters, which include the labels and physical limits, and init_params is the initial settings of the parameter space.

Note

If the physical limits of parameters (the minimum and maximum values) is unknown or there is no physical limits, it should be set to np.nan.

Finally, we can build a predictor and pass the data and model instance to it to train the network:

import ecopann.ann as ann

stepStop_n = 6
num_train = 1000
epoch = 1000

predictor = ann.ANN(sim_data, model, param_names, params_dict=params_dict,
                    cov_matrix=None, init_params=init_params, epoch=epoch,
                    num_train=num_train, local_samples=None, stepStop_n=stepStop_n)

predictor.train(path='linear')

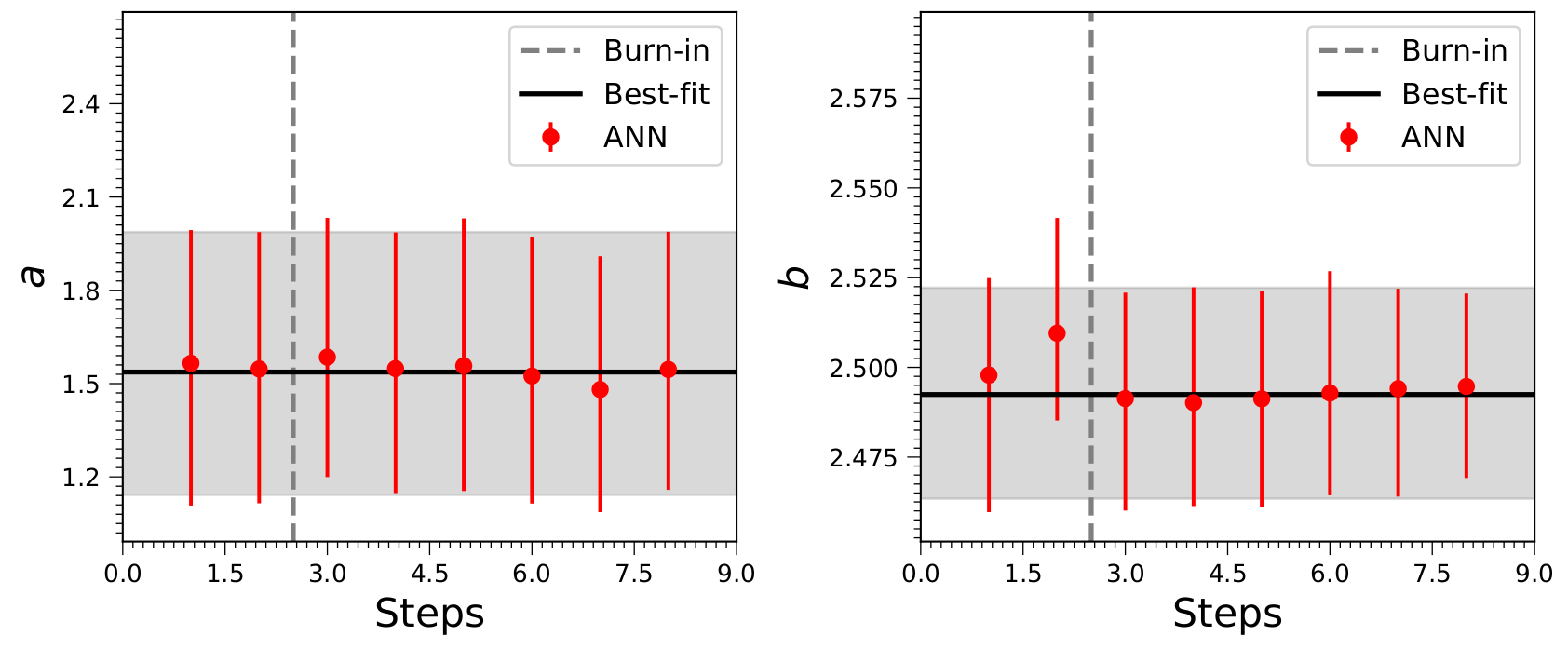

In the training process, the results which include the network model, the predicted ANN chain, and some hyperparameters will be saved to the indicated folder. After the training process, we can plot and save the predicted parameters in each step by using the following commands:

predictor.plot_steps()
predictor.save_steps()
_images/linear_steps.png

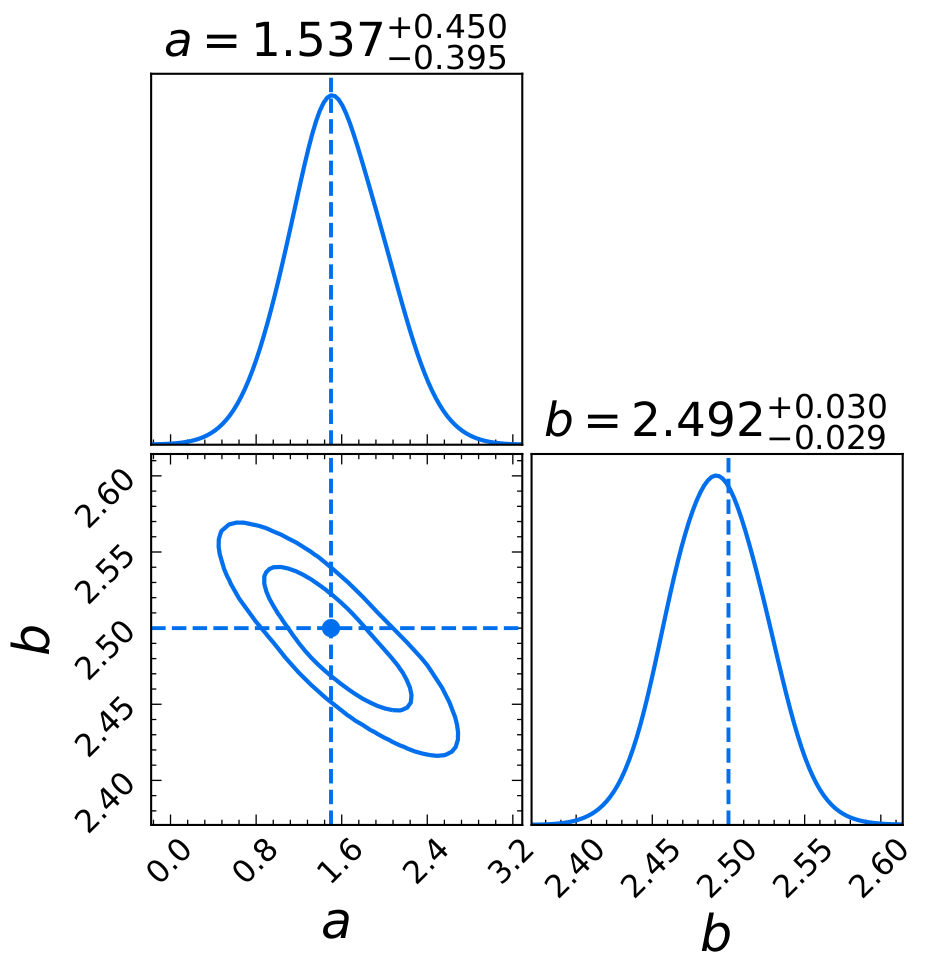

and can also plot the contours of the estimated parameters:

predictor.plot_contours(fill_contours=False, show_titles=True)
predictor.save_contours()
_images/linear_contour.png

Note

The parameters are estimated using the chains after the burn-in phase, and the stepStop_n is the number of chains to be obtained.

Also, the number of the training set (num_train) and the epoch should be set large enough to ensure the network learns a reliable mapping. See the ecopann.ann.ANN module in Parameter estimation for details.

In the training process, the results of each step will be saved, so it is possible to estimate parameters before the ending of the training process. To do this, one needs to build another predictor and pass the random number of the first step (randn_num) that identifies the saved results to the predictor:

import ecopann.cosmic_params as cosmic_params
import coplot.plot_contours as plc

# randn_num and steps_n should be replaced by your values
randn_num = 1.06304; steps_n = 4

predictor = ann.RePredict(sim_data, cov_matrix=None, path='linear',
                          randn_num=randn_num, steps_n=steps_n,
                          params_dict=params_dict)

predictor.from_chain()
# predictor.from_net()
chain_ann = predictor.chain_ann
predictor.plot_steps()
predictor.plot_contours(bins=50, fill_contours=True, show_titles=True)
predictor.save_steps()
predictor.save_contours()

labels = cosmic_params.ParamsProperty(param_names, params_dict=params_dict).labels
plc.Contours(chain_ann).plot(bins=50,labels=labels,fill_contours=False,show_titles=True,
                             best_values=[a_fid, b_fid],show_best_value_lines=True)

Note that steps_n should be set according to the steps completed.

Using multiple datasets

In practical scientific research, we may need to use multiple data sets to constrain the parameters, which is also possible for ECoPANN. To illustrate this, we constrain parameters of \(w\)CDM cosmological model using the observations of Type Ia supernovae (SNe Ia) and baryon acoustic oscillations (BAO). We first build a class object for this model:

import numpy as np
from scipy import integrate

class Simulate_SNe_BAO(object):
    def __init__(self, z_SNe, z_BAO):
        self.z_SNe = z_SNe
        self.z_BAO = z_BAO
        self.c = 2.99792458e5

    def fwCDM_E(self, x, w, omm):
        return 1./np.sqrt( omm*(1+x)**3 + (1-omm)*(1+x)**(3*(1+w)) )

    def fwCDM_dl(self, z, w, omm, H0=70):
        def dl_i(z_i, w, omm, H0):
            dll = integrate.quad(self.fwCDM_E, 0, z_i, args=(w, omm))[0]
            dl_i = (1+z_i)*self.c *dll/H0
            return dl_i
        dl = np.vectorize(dl_i)(z, w, omm, H0)
        return dl

    def fwCDM_mu(self, params):
        w, omm = params
        dl = self.fwCDM_dl(self.z_SNe, w, omm)
        mu = 5*np.log10(dl) + 25
        return mu

    def fwCDM_Hz(self, params):
        w, omm = params
        H0 = 70
        hz = H0 * np.sqrt(omm*(1+self.z_BAO)**3 + (1-omm)*(1+self.z_BAO)**(3*(1+w)) )
        return hz

    def fwCDM_DA(self, params):
        w, omm = params
        dl = self.fwCDM_dl(self.z_BAO, w, omm)
        da = dl/(1+self.z_BAO)**2
        return da

    def simulate(self, sim_params):
        zz = [self.z_SNe, self.z_BAO, self.z_BAO]
        yy = [self.fwCDM_mu(sim_params), self.fwCDM_Hz(sim_params), self.fwCDM_DA(sim_params)]
        return zz, yy

Note that the measurement of SNe Ia is the distance modulus \(\mu(z)\) (fwCDM_mu), and the measurements of BAO are the Hubble parameter \(H(z)\) (fwCDM_Hz) and the angular diameter distance \(D_A(z)\) (fwCDM_DA). So, the outputs of the simulate method are \(\mu(z)\), \(H(z)\), and \(D_A(z)\). The parameters to be constrained are \(w\) (w) and \(\Omega_m\) (omm). Then we generate mock observational using the method below:

def sim_SNe(fid_params = [-1, 0.3]):
    z = np.arange(0.1+0.05, 1.7+0.05, 0.1)
    N_per_bin = np.array([69,208,402,223,327,136,136,136,136,136,136,136,136,136,136,136])
    err_stat = np.sqrt( 0.08**2+0.09**2+(0.07*z)**2 )/np.sqrt(N_per_bin)
    err_sys = 0.01*(1+z)/1.8
    err_tot = np.sqrt( err_stat**2+err_sys**2 )
    sim_mu = Simulate_SNe_BAO(z, None).fwCDM_mu(fid_params)
    sne = np.c_[z, sim_mu, err_tot]
    return sne

def sim_BAO(fid_params = [-1, 0.3]):
    z = np.array([0.2264208 , 0.32872246, 0.42808132, 0.53026194, 0.62958298,
                  0.72888132, 0.82817967, 0.93030733, 1.02958298, 1.12885863,
                  1.22811158, 1.33017872, 1.42938629, 1.53137778, 1.63045674,
                  1.72942222, 1.80803026])
    errOverHz = np.array([0.01824, 0.01216, 0.00992, 0.00816, 0.00704, 0.00656, 0.0064 ,
                          0.00624, 0.00656, 0.00704, 0.008  , 0.00944, 0.01168, 0.0152 ,
                          0.02096, 0.02992, 0.05248])
    errOverDA = np.array([0.0112 , 0.00752, 0.00608, 0.00496, 0.00432, 0.00416, 0.004  ,
                          0.004  , 0.00432, 0.00464, 0.00544, 0.00672, 0.00848, 0.01136,
                          0.01584, 0.02272, 0.04016])

    sim_Hz = Simulate_SNe_BAO(None, z).fwCDM_Hz(fid_params)
    sim_Hz_err = sim_Hz * errOverHz
    sim_DA = Simulate_SNe_BAO(None, z).fwCDM_DA(fid_params)
    sim_DA_err = sim_DA * errOverDA
    sim_Hz_all = np.c_[z, sim_Hz, sim_Hz_err]
    sim_DA_all = np.c_[z, sim_DA, sim_DA_err]
    return sim_Hz_all, sim_DA_all

fid_params = [-1, 0.3]
sim_mu = sim_SNe(fid_params=fid_params)
sim_Hz, sim_DA = sim_BAO(fid_params=fid_params)
z_SNe = sim_mu[:,0]
z_BAO = sim_Hz[:,0]

After that, we can build a model instance and make some settings for parameter initialization:

model = Simulate_SNe_BAO(z_SNe, z_BAO)
params_dict = {'w'      : [r'$w$', np.nan, np.nan],
              'omm'     : [r'$\Omega_m$', 0.0, 1.0]}
param_names = [key for key in params_dict.keys()]
init_params = np.array([[-2, 0], [0, 0.6]])

Finally, we can build a predictor and pass the data and model instance to it to train the network:

stepStop_n = 5
num_train = 1000
epoch = 1000

predictor = ann.ANN([sim_mu, sim_Hz, sim_DA], model, param_names, params_dict=params_dict,
                    cov_matrix=None, init_params=init_params, epoch=epoch,
                    num_train=num_train, local_samples=None, stepStop_n=stepStop_n)

predictor.train(path='SNe_BAO')
chain_ann = predictor.chain_ann
predictor.plot_steps()
predictor.plot_contours(fill_contours=False, show_titles=True)
predictor.save_steps()
predictor.save_contours()

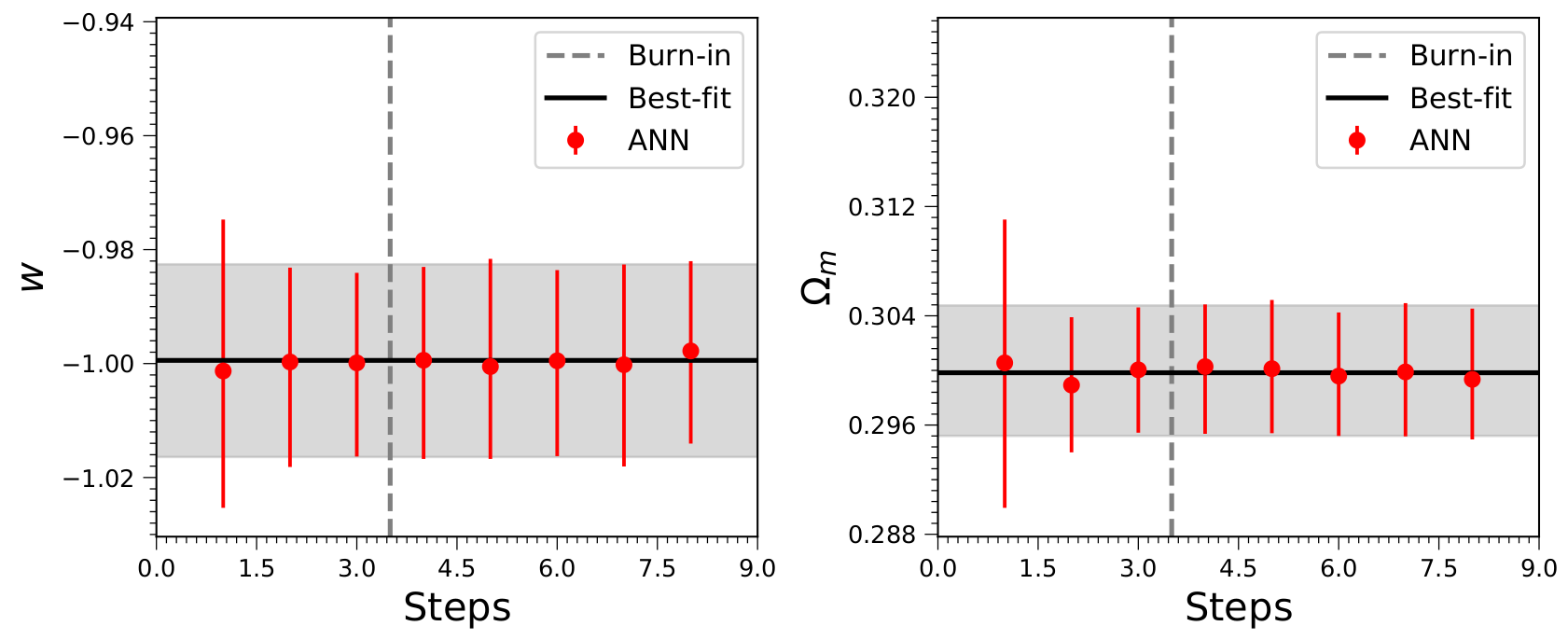

_images/SNe_BAO_steps.png

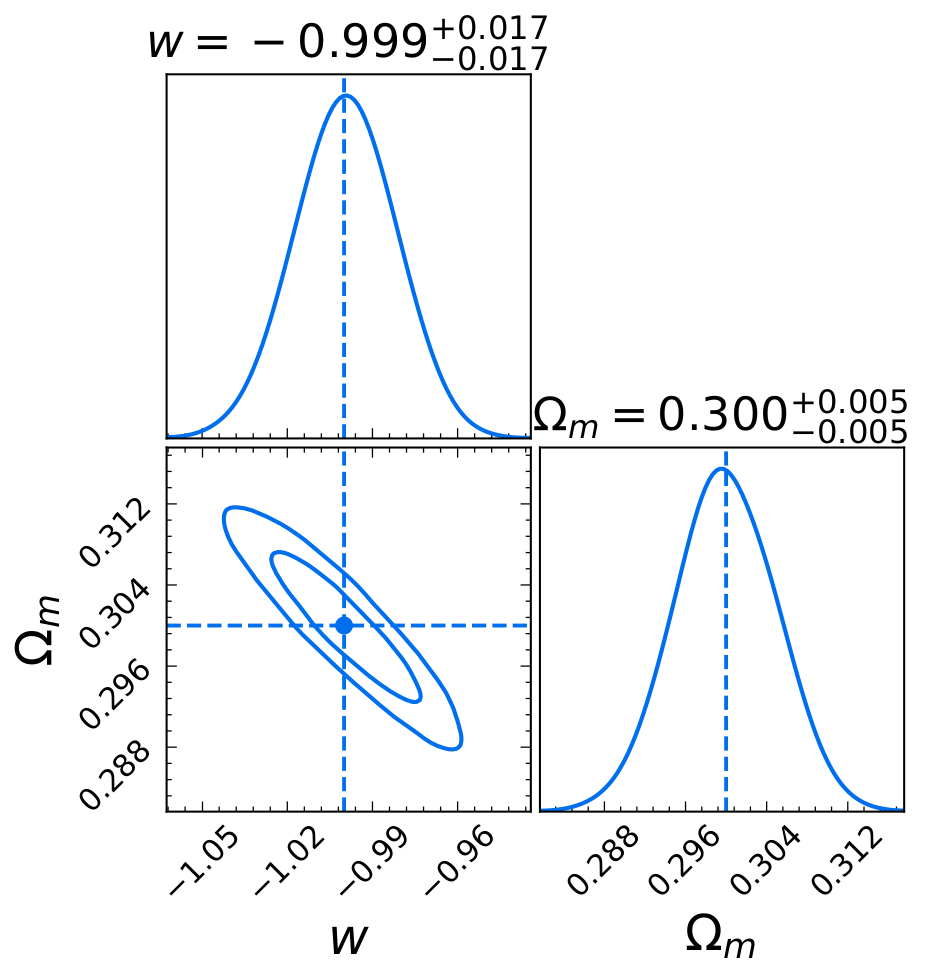

_images/SNe_BAO_contour.png

Note

The data used here have no covariance, so the covariance matrix (cov_matrix) is set to None. If the data have covariance matrices, such as cov1, cov2, and cov3, they should be passed to the predictor by setting cov_matrix=[cov1, cov2, cov3]. Furthermore, if some data sets have no covariance, such as the first data set, the setting of the covariance matrix should be cov_matrix=[None, cov2, cov3].
